HTX 4
$1,299.00

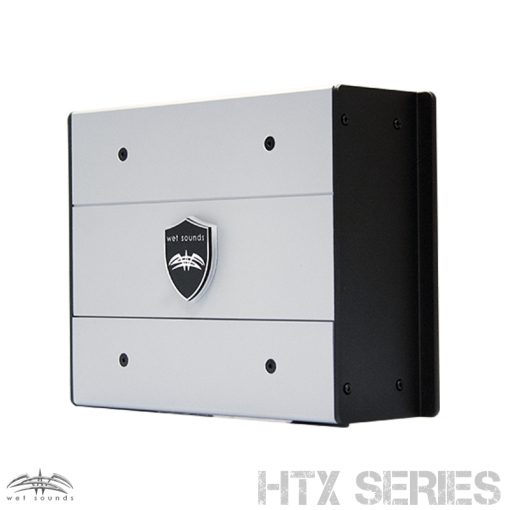

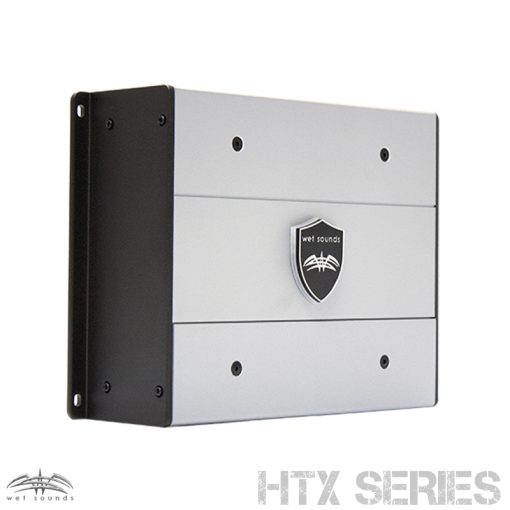

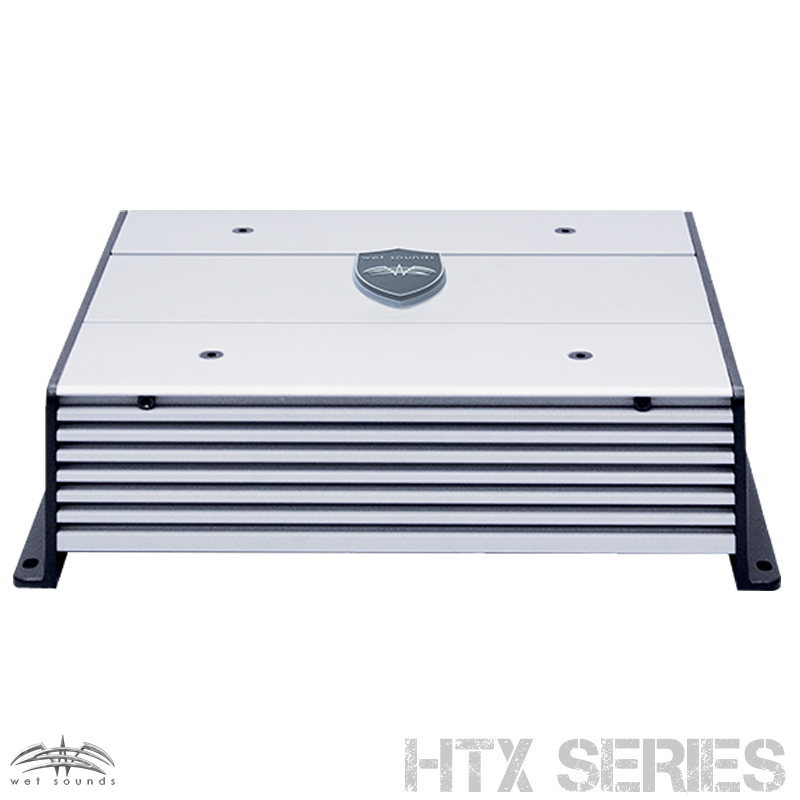

Wet Sounds HTX4 Class D Subwoofer Amplifier
New Zealand’s Trusted High Performance Marine Audio
Wet Soundsâ„¢ Hydro-Techâ„¢ X (HTX) Series Amplifier. Wet Sounds represents the ultimate in High Performance Marine Audio. Wet Sounds HTX Series Marine Amplifiers are designed to be a complete solution for every type of extreme marine application. HTX amplifiers use superior performance circuitry by utilizing Class D Power Supplies. These amplifiers have extreme power output packed inside a small chassis, thermal overload protection, flexible crossovers, extended inputs. HTX amplifiers are a well balanced match for all of the Wet Soundsâ„¢ products suitable for all New Zealand boats and wet areas.
Features
• Optimized Performance Circuitry, With Class-D Power Supplies
• Extreme Power Output Packed Inside A Small Chassis
• Thermal Overload Protection
• Flexible Crossovers And Extended Inputs
• High-Mass Heat Sink
• Smart Microprocessor For Great Electronic Performance
• Supports Wet Sounds’ Extensive CrossOver Network
Please check the manual for installation notes and full technical specifications:
Wet_Sounds_HTX-Series-Manual
Technical Specs
- RMS Power @ 4 ohm Stereo 100 x 4 watts RMS @ < 1.0% THD
- RMS Power @ 2 ohm Stereo 150 x 4 watts RMS @ < 1.0% THD
- RMS Power @ 4 ohm Mono 300 x 2 watts RMS @ < 1.0% THD
- Input Sensitivity Variable from 0.2V to 6.1V
- Frequency Response -3dB 7Hz-33Hz
- Bass Boost 0db -12db @ 45Hz
- Crossover Range Low Pass 50Hz – 250Hz 12dB/Octav
- Crossover Range Subsonic Filter 50Hz – 250Hz 12dB/Octav
- Separation >52dB
- S/N Ratio (Awtg)
>62dB (1 watt 4 Ohm)
>85dB (125 watts 4 Ohm)
- Note: All specifications are for each HTX4
